Smart TRIAC Dimmer Switch - 1 Gang / Socket 120
Product Code: YO811d (R2)
Features:
- High Compatibility Dimmer
- Works With Dimmable Driver
- Adjust Brightness In Customized Increments
- High Adjustment Accuracy
- Voice Control and Remote Control via Yoswit App
- Memorize Your Favourite Brightness
- Low Power Consumption
Product Variant:
Template
Colour:
Features
Comparison
Yoswit Smart Switch
|
Schneider
(ULTI Ezinstall3) |
Legrand
(Arteor/Adorne/Radiant) |
Leviton
(Decora) |
LUTRON
(Caseta) |
|
|---|---|---|---|---|---|
| No Hub / Router | |||||
| No Rewiring | |||||
| No Setup | |||||
| No Pairing | |||||
| Support TRIAC & 0/1-10V | |||||
| 2-Wire TRIAC Compatible | Do Not Support LED | Do Not Support LED | |||
| 3-Wire TRIAC Compatible | Do Not Support LED | ||||
| 3-Wire 0/1-10V Compatible | |||||
| Leading Edge & Trailing Edge Compatible | |||||
| Available Socket Type | 55/86/118/120 | 55/86 | 55/86/120 | 120 | 120 |
| Technology | Bluetooth | RF | Wifi/Zigbee/RF | Wifi/Bluetooth/ZWAVE | Wifi/Zigbee/RF |
Yoswit Smart Switch
- No Hub / Router:
- No Rewiring:
- No Setup:
- No Pairing:
- Support TRIAC & 0/1-10V:
- 2-Wire TRIAC Compatible:
- 3-Wire TRIAC Compatible:
- 3-Wire 0/1-10V Compatible:
- Leading Edge & Trailing Edge Compatible:
- Available Socket Type: 55/86/118/120
- Technology: Bluetooth
Schneider
(ULTI Ezinstall3)
(ULTI Ezinstall3)
- No Hub / Router:
- No Rewiring:
- No Setup:
- No Pairing:
- Support TRIAC & 0/1-10V:
- 2-Wire TRIAC Compatible: Do Not Support LED
- 3-Wire TRIAC Compatible: Do Not Support LED
- 3-Wire 0/1-10V Compatible:
- Leading Edge & Trailing Edge Compatible:
- Available Socket Type: 55/86
- Technology: RF
Legrand
(Arteor/Adorne/Radiant)
(Arteor/Adorne/Radiant)
- No Hub / Router:
- No Rewiring:
- No Setup:
- No Pairing:
- Support TRIAC & 0/1-10V:
- 2-Wire TRIAC Compatible: Do Not Support LED
- 3-Wire TRIAC Compatible:
- 3-Wire 0/1-10V Compatible:
- Leading Edge & Trailing Edge Compatible:
- Available Socket Type: 55/86/120
- Technology: Wifi/Zigbee/RF
Leviton
(Decora)
(Decora)
- No Hub / Router:
- No Rewiring:
- No Setup:
- No Pairing:
- Support TRIAC & 0/1-10V:
- 2-Wire TRIAC Compatible:
- 3-Wire TRIAC Compatible:
- 3-Wire 0/1-10V Compatible:
- Leading Edge & Trailing Edge Compatible:
- Available Socket Type: 120
- Technology: Wifi/Bluetooth/ZWAVE
LUTRON
(Caseta)
(Caseta)
- No Hub / Router:
- No Rewiring:
- No Setup:
- No Pairing:
- Support TRIAC & 0/1-10V:
- 2-Wire TRIAC Compatible:
- 3-Wire TRIAC Compatible:
- 3-Wire 0/1-10V Compatible:
- Leading Edge & Trailing Edge Compatible:
- Available Socket Type: 120
- Technology: Wifi/Zigbee/RF

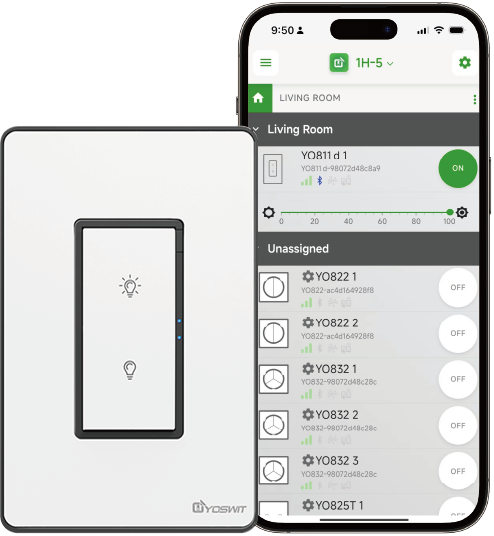

Run Your Home from Your Phone
Mobile As Hub
Voice Control
Mesh-like Network
Remote Control
Room and Scenes
Away Detection
Schedule Timers
Password Protection
IFTTT
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please Click Here to get the growing list.
IOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
Yoswit Smart TRIAC Dimmer Switch
|
|
| Model |
YO811d (R2)-110
|
|
| Socket Type |
Socket 120
|
|
| Revision |
V7.0
|
|
| Compliance |
ETL,CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|
| Dimensions | ||
| Product Size |
|
|
| Mechanical | ||
| Operation Temperature |
-10°C to 40°C
|
|
| Operating Humidity |
0-95% RH, Non-Condensing
|
|
| Operating Environment |
Interior
|
|
| Operation |
APP / Manual
|
|
| Ingress Protection (IP) |
20
|
|
| Electrical | ||
| Operation Power |
100-120V AC (50/60Hz)
|
|
| Power Consumption |
≤1W
|
|
| Max. Load |
1A
|
|
| Wireless | ||
| Frequency |
2.4GHz
|
|
| Connection |
BLE 4.2
|
|
| Range |
Open Area: >50m / Interior: 3-20m
|
|
| Package | ||
| What's in the Box |
|
|
WARNING !
Disconnect Power
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.
Basic Installation
1

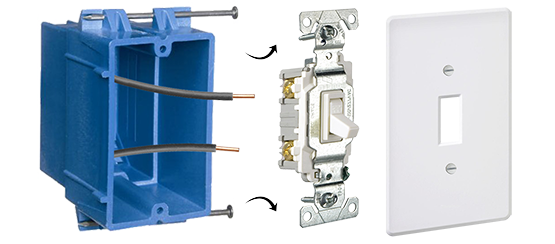

Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.
2
Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.
3

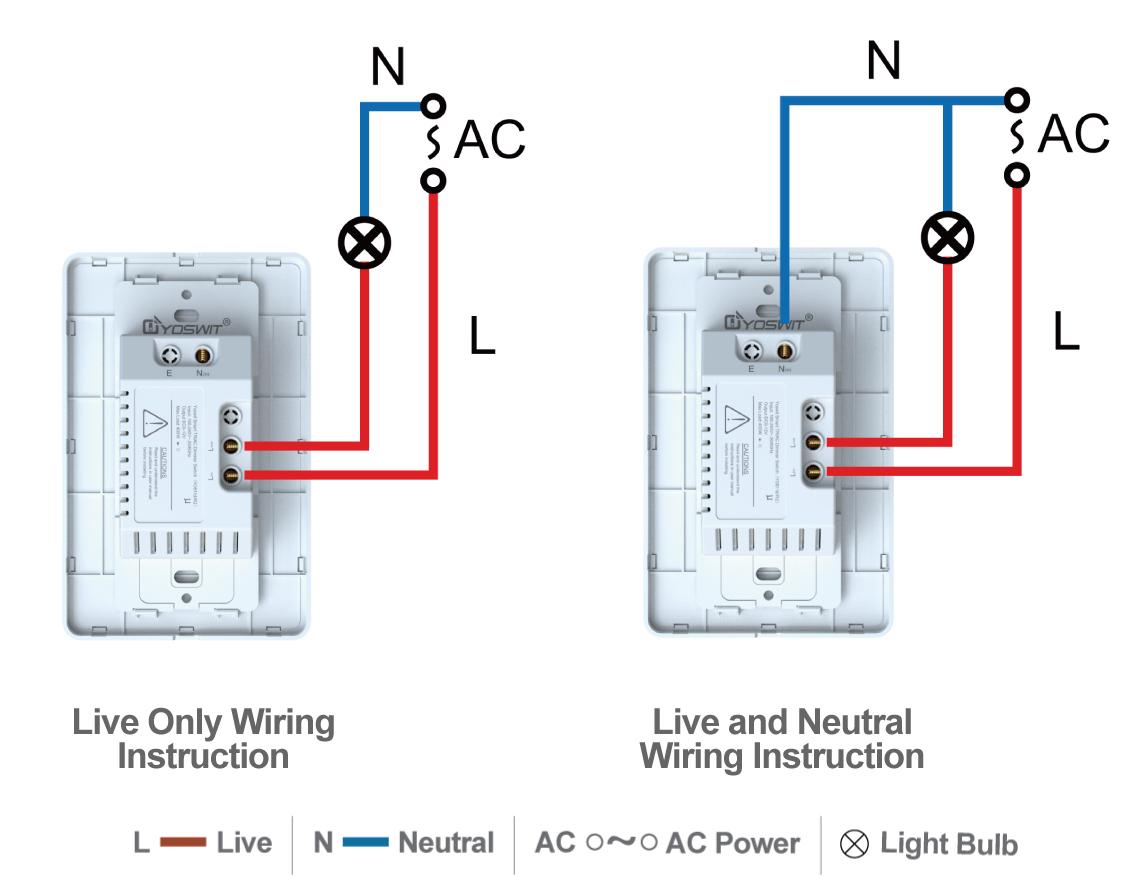

Connect the wires to the switch case. Make sure that the wires are secure.
Warning
To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.
4
Fasten the switch on wall by placing the proper wall mount components.
5
Turn on the circuit breaker and connect to the power.
6
Ensure the light indicator is on and test your dimmer switch by tapping 2 to 3 times. Your lights will be set brighter or dimmer.
7
Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.
Installation - LED Power Stabilizer (Optional)
1
After 2-wire (without neutral wire) wiring, in case you encountered conditions of circuit instability, lightings gleaming or no light, you may (i) adopt 3-wire (with neutral wire) wiring method, or (ii) place the power driver at two ends of any one lamp as the diagram below:
Installation complete.
Download the Yoswit App and enjoy it now!
Yoswit will automatically detect the switch and add to your device list.
